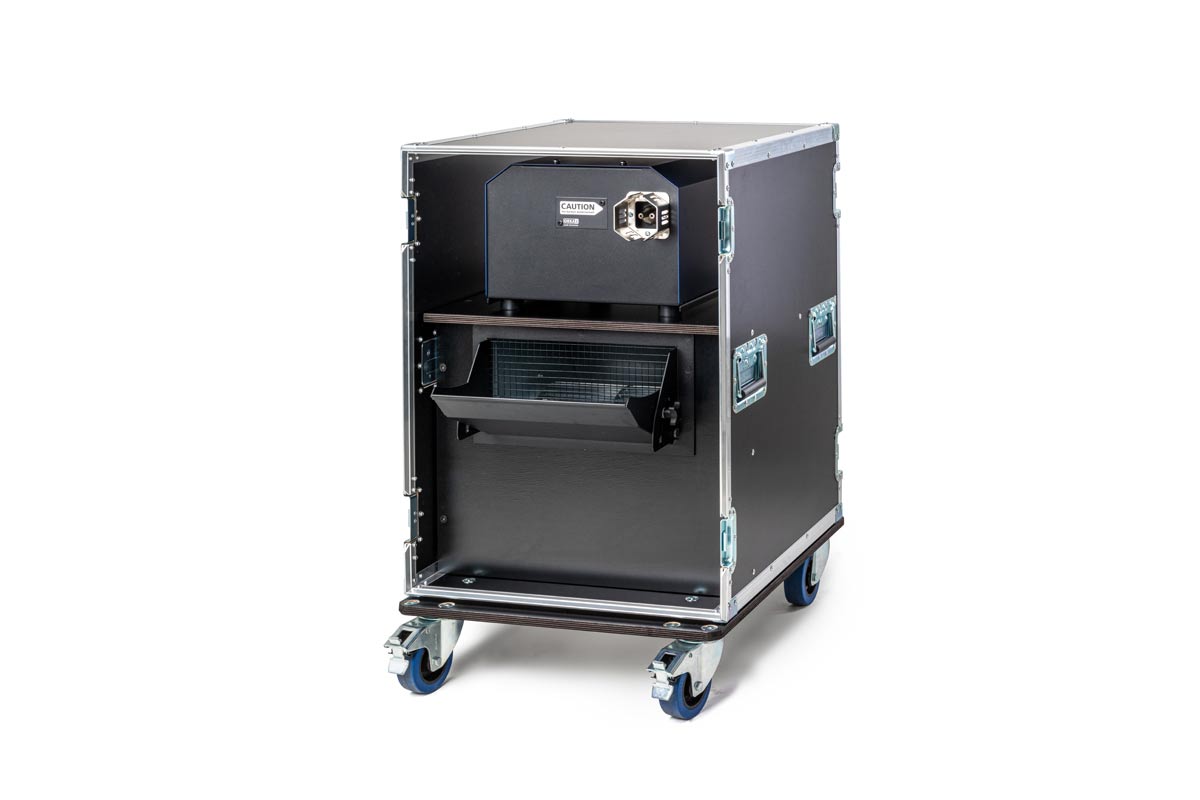

The ORKA/Case is the most powerful touring fog generator available on the market that is produced as a serial product. It can be used wherever a high quantity of fog is needed in a very short time.
Technical data
Procedure
Vaporizing fog machine
Power requirement
9000 watt / 8320 watt (208 V)
Voltage
400 V / 50 Hz / 16 A CEE, 1 x 208 V / 60 Hz / 40 A (USA)
Warm up time
approx. 15 min.
Fluid consumption
500 ml/min. at 100% output, 145 ml/min. at continuous output
Fluid tank capacity
5 litre
Fog output
adjustable in 99 steps
Output projection
max. 30 m
Fogging time
approx. 2 min. at max. output, at < 50% continous output
Temperature control
Microprocessor controlled
Overheating protection
Heater block/thermostat, Pump/Thermal switch
Control
DMX 512, 0 - 10 V analog
Dimensions (L x W x H)
80 x 60 x 87 cm
Weight
93 kg incl. canister
Delivery includes
Flightcase, Fan, 5L canister Regular-Fog
- Procedure: Centrifugal blower
- Voltage: 230 V / 50 Hz
- Air volume: 2020 m³/h
- Power requirement: 1060 Watt
- Current: 5.38 A
- Capacitor (internal): 10 µF / 450 VDB
